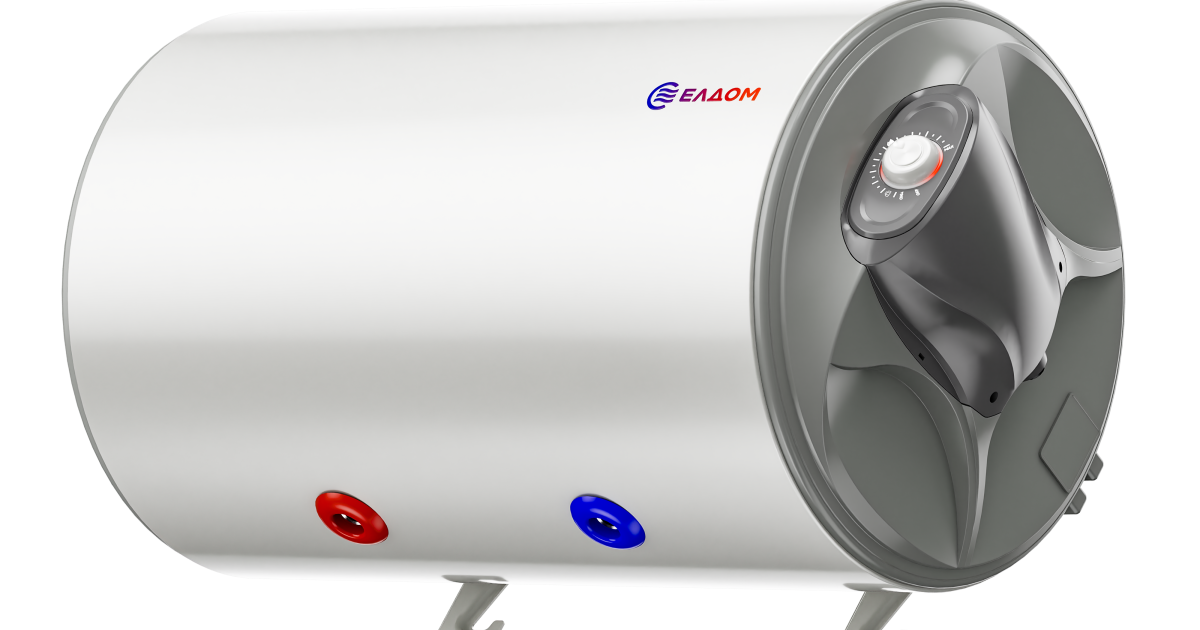

Horizontal Water Heater ELDOM 80
3 kW, stainless steel tank, electrical connections on the right, pipes at the bottom, diameter 462 mm
NEWProductID WHF08046BRI
Compare
Download brochureDiscover the perfect solution for your home with this innovative water heater, combining energy efficiency, safety, and a long service life!
New, improved design with a matte white finish:
• Twin LED visual indicator:
- Red light – heating mode;
- White light – target temperature reached.
• Combined control knob for power and temperature adjustment;
• ECO mode: thermostat setting at 60°C, the most economical operating mode for the water heater.
• ENERGY-SAVING: features HFO Closed-Cell thermal insulation with a fine, closed-cell structure. This is an eco-friendly, next-generation polyurethane system offering high energy efficiency. The insulation, over 33 mm thick, ensures minimal heat loss and significant savings!
• LONG SERVICE LIFE:
- Dual magnesium anode system for optimal corrosion protection throughout the entire internal volume.
• SAFE: features a unique six-level protection system:
- Elliptical flange – a patented design ensuring maximum safety against overpressure;
- External capillary thermostat – allows for easy adjustment of the desired water heating temperature;
- Capillary thermal cut-out – reliably prevents the appliance from overheating;
- Combined metal valve with dual protective functions – acts as both a non-return (check) valve and a safety valve; - "Vacation" mode – the thermostat automatically maintains the water temperature above 5°C;
- High level of moisture protection – IP24.
• Tubular electric heating element – designed and manufactured by ELDOMINVEST using state-of-the-art technology.
• Antibacterial protection: when the thermostat is set to the maximum, all viruses and bacteria are eliminated.
| Installation: | Horizontal |
| Capacity range: | 80 |
| Water tank: | Stainless |
| Nominal power (kW): | 3 |
| Energy efficiency class: | C |
| Control: | mechanical control |
| Type of electric heating element: | Immersion heating element |
| Weight [kg]: | 21.5 |
| Dimensions ØxH [mm]: | 462 x 835 |
| Voltage [V]: | 230 V~ |
| Nominal pressure [MPa]: | 0.7 |
| IP protection: | IP24 |
| Annual electricity consumption [kWh/annum]: | 1407 |
| Nominal volume [l]: | |
| Load profile: | M |
| Colors: | White |
| Weight: | 21.5 kg. |
