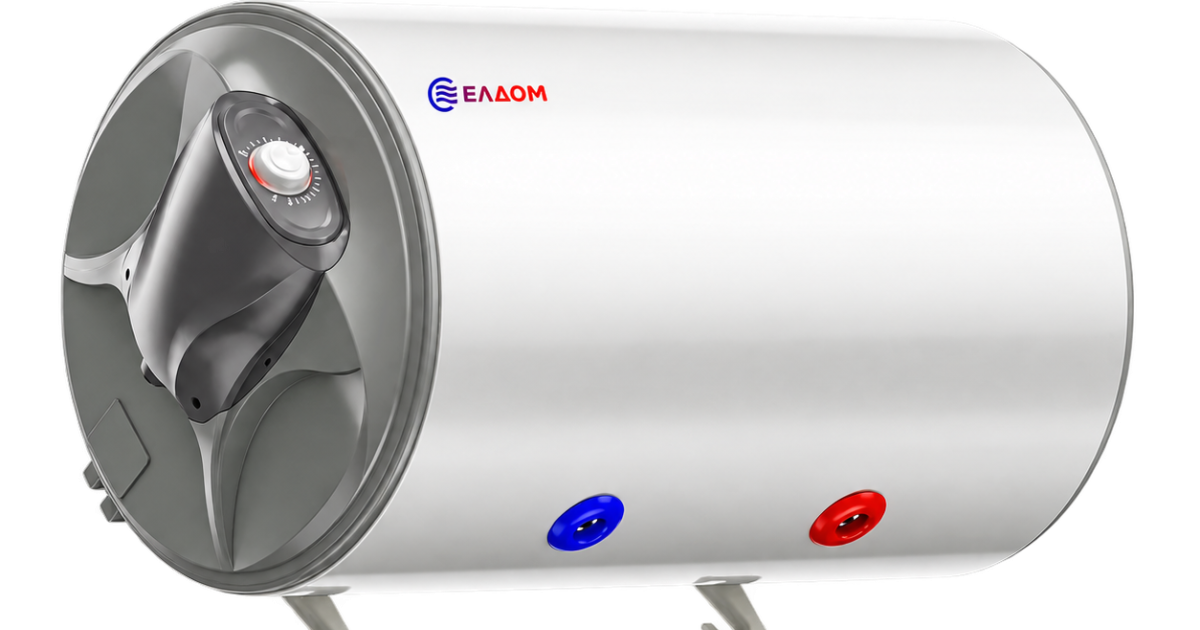

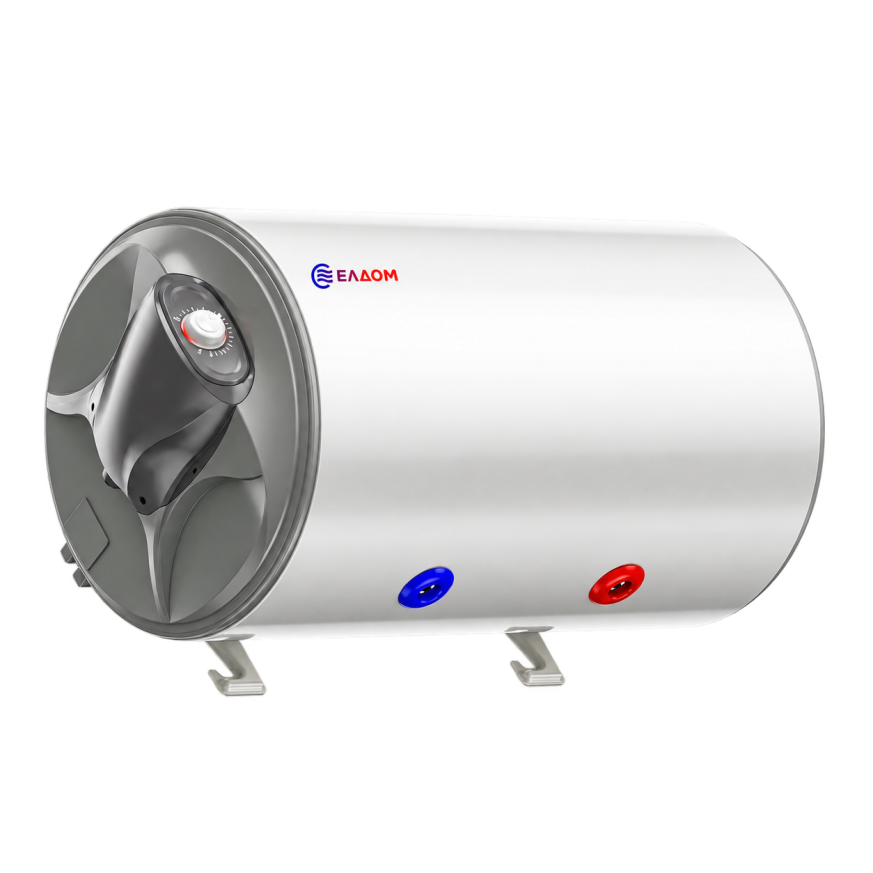

Horizontal Water Heater ELDOM 80
3 kW, enameled water tank, electrical connections on the left, pipes at the bottom, diameter 462 mm
NEWProductID WHF08046FBL
Compare
Download brochureENERGY-SAVING, RELIABLE, LONG-LASTING
New improved design:
• Twin LED visual indicator:
- Red light – heating mode;
- White light – target temperature reached.
• Combined control knob for switching the unit on and setting the temperature;
• ECO mode: thermostat setting at 60°C, the most economical operating mode for the water heater.
- "Vacation" mode – the thermostat automatically maintains the water temperature above 5°C;
• ENERGY-SAVING: HFO Closed-Cells thermal insulation with a fine, closed-cell structure. This is an eco-friendly, next-generation polyurethane system offering high energy efficiency. The insulation, over 33 mm thick, ensures minimal heat loss and significant energy savings!
• LONG-LASTING:
- SHIELD technology – the water tank is protected by a zirconium-based enamel, formulated specifically for superior wear resistance;
- A dual magnesium anode system, providing optimal corrosion protection throughout the entire internal volume.
• RELIABLE – featuring a unique six-level protection system:
- Robust circular flange – a patented design ensuring maximum safety in the event of overpressure;
- External capillary thermostat – allows for easy adjustment of the desired water heating temperature;
- Capillary thermal cut-out – reliably prevents the appliance from overheating; - Combined metal valve with dual protective functions: a non-return valve and a safety valve.
- Freeze protection: the thermostat automatically maintains the water temperature above 5°C.
- High level of moisture protection: IP24.
• Reliable electric heating element – designed and manufactured by ELDOMINVEST using state-of-the-art technology.
• Antibacterial protection: setting the thermostat to the maximum level eliminates all viruses and bacteria.
• Modern design – a stylish casing with a matte white finish that blends naturally into any bathroom.
| Installation: | Horizontal |
| Capacity range: | 80 |
| Water tank: | Enameled |
| Nominal power (kW): | 3 |
| Energy efficiency class: | C |
| Control: | mechanical control |
| Type of electric heating element: | Immersion heating element |
| Weight [kg]: | 26.5 |
| Dimensions ØxH [mm]: | 462 x 835 |
| Voltage [V]: | 230 V~ |
| Nominal pressure [MPa]: | 0.8 |
| IP protection: | IP24 |
| Annual electricity consumption [kWh/annum]: | 1407 |
| Nominal volume [l]: | |
| Load profile: | M |
| Colors: |
